Product Code: SLR5000
Call for Price: 417-887-4663

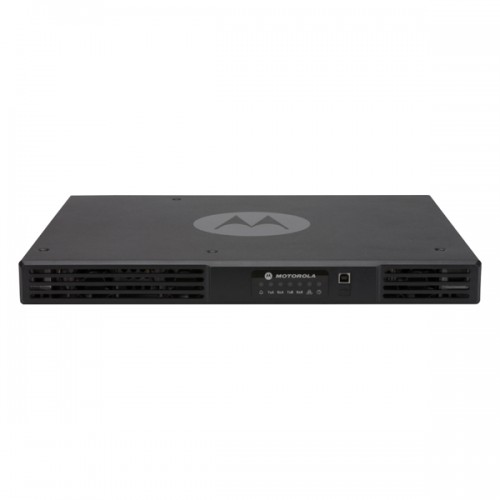

For your business to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5000 Series Repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace whether you're in the field or on the factory floor.

With its sleek form factor and low power consumption, the MOTOTRBO SLR 5000 Series is engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters as the cornerstone of a MOTOTRBO professional two-way radio system.

Whether you need the simplicity of a single site conventional system, or the powerful trunking capabilities of Capacity Plus, Linked Capacity Plus or Connect Plus, the SLR 5000 Series delivers the power of digital two-way radio to your workforce.


GENERAL SPECIFICATIONS VHF UHF UHF2 Frequency Range 136-174 MHz 400-470 MHz 450-512 MHz Channel Capacity 64 RF Output Power 1-50 W Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm) Weight 19 lbs (8.6 kg) Input Voltage (AC) 100-240 Vac, 47-63 Hz Current (standby), 110 / 240 V 0.18 / 0.25 A Current (transmitting), 110 / 240 V 1.5 / 0.9 A Input Voltage (DC) 11.0-14.4 Vdc Current (standby) 0.7 A Current (transmitting) 9.5 A Operating Temperature Range -22 to +140 °F (-30 to +60 °C) Humidity RH of 95%, non-condensing at 122F (50 C) Max Duty Cycle 100% FCC Description ABZ99FT3094 ABZ99FT4096 ABZ99FT4097 IC Description 109AB-99FT3094 109AB-99FT4096 109AB-99FT4097 Digital Vocoder Type AMBE+2™ Battery Charger Capacity 12 V, 3 A Connectivity Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet Supported System Types Digital Conventional, IP Site Connect, Capacity Plus (Single Site and Multi-Site), Capacity Max, Connect Plus, Analog Conventional, MPT 1327
